What Is a Quick Opening Bag Filter Housing
The opening mechanism of a bag filter housing greatly affects its ease of use and suitability for different applications. Common types include swing bolt, hinged arm, and quick-opening designs.

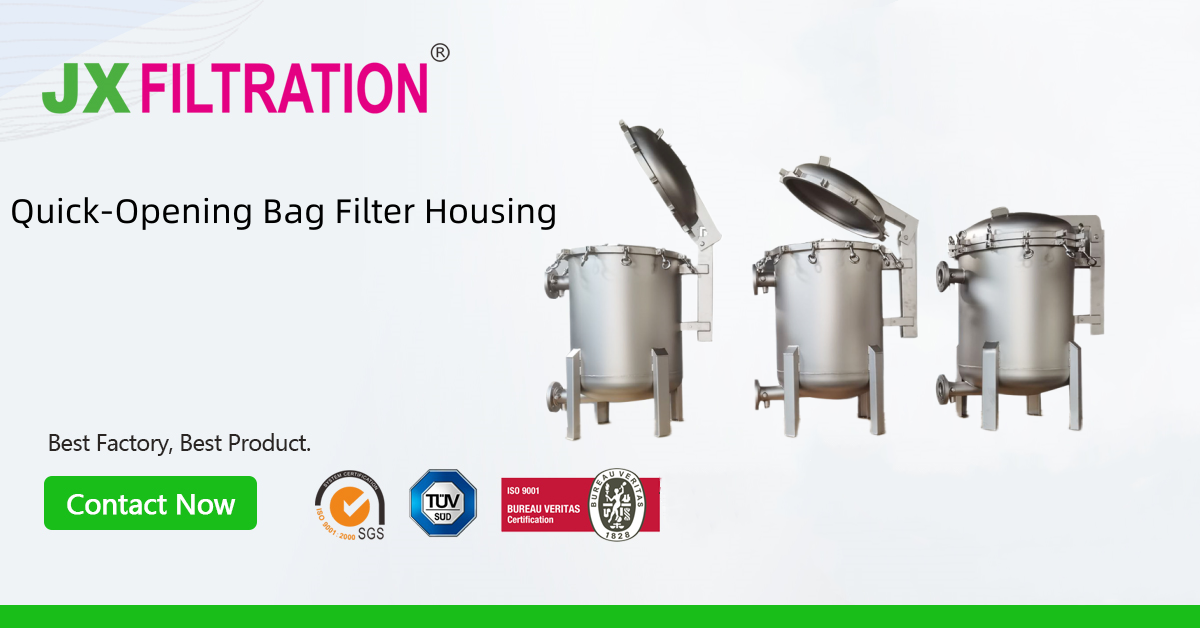

Quick-Opening Type (Latch / Lever Mechanism)
Structural Features:
-
Equipped with an eccentric cam, lever, or spring latch mechanism. The cover can be locked or released simply by manually turning the handle.
-
Uses an O-ring or rubber gasket for sealing, with a bolt-free design.
Operating Procedure:
-
Pull the handle to open the lid
-
Lift the cover
-
Replace the filter bag
-
Close the lid and lock the handle
Typical Applications:
-
Small-scale filters: Flow rate < 2 m³/h, tank diameter ≤ 400 mm
-
High-frequency bag changes: Applications requiring frequent access, such as ultrapure water treatment in the electronics industry
-
Mobile systems: Portable setups like vehicle-mounted filtration units and laboratory devices
Advantages:
-
Extremely fast operation (3–5 minutes), can be done by a single person
Limitations:
-
Lowest pressure resistance (generally ≤ 0.3 MPa)
-
Sealing ring requires regular replacement
