What Is a Quick Opening Bag Filter

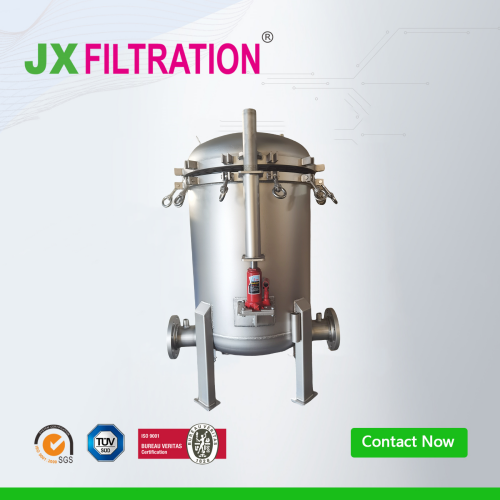

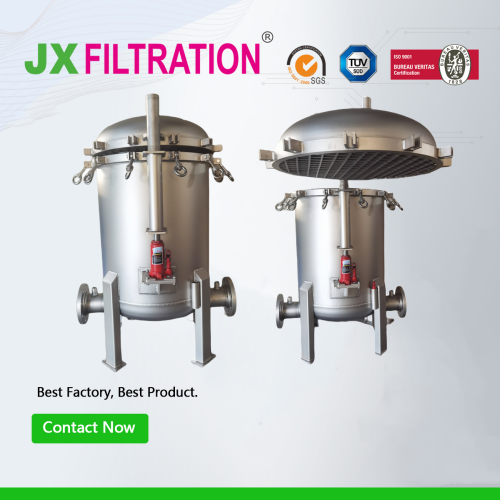

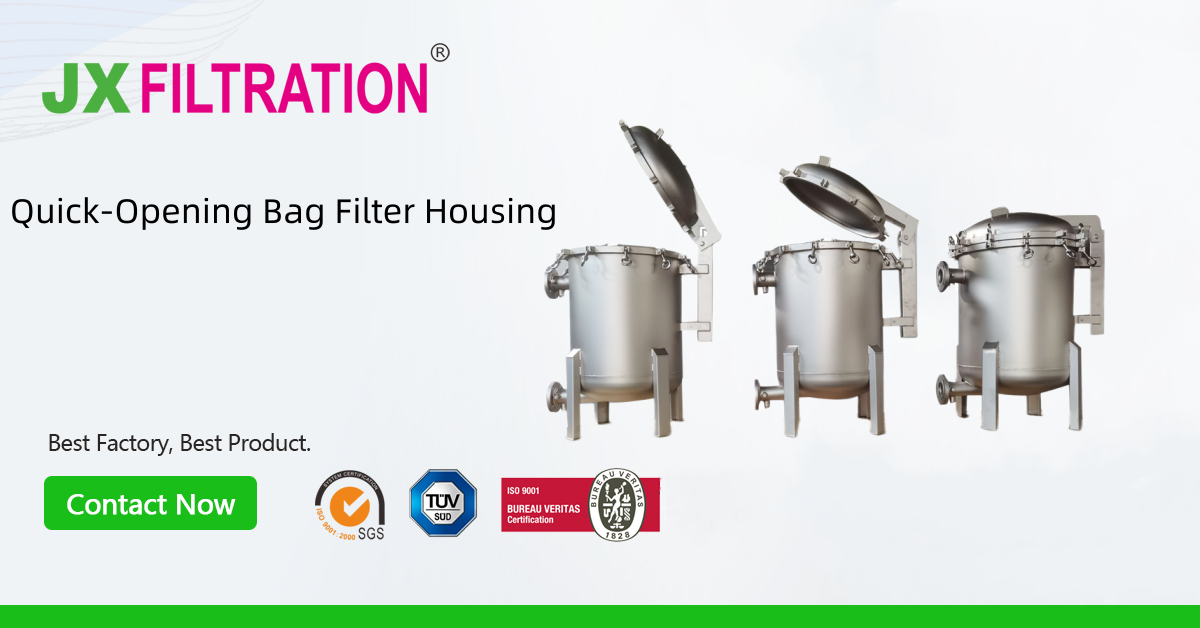

Quick-Opening Bag Filter Housing (Latch/Lever Type)
Structural Features:
-
Designed with an eccentric cam, lever, or spring latch mechanism. The cover can be locked/unlocked by manually rotating the handle.
-
Uses an O-ring or rubber gasket as the sealing surface, with a bolt-free structure.
Operation Process:
-
Pull the opening handle
-
Lift the cover
-
Replace the filter bag
-
Close and lock the handle
Typical Applications:
-
Small-scale filters: Flow rate < 2 m³/h, housing diameter ≤ 400 mm
-
Frequent replacement: Precision filtration requiring multiple bag changes per hour, such as ultrapure water systems in the electronics industry
-
Mobile systems: Vehicle-mounted filtration units, small laboratory setups, and other portable applications
Advantages and Disadvantages:
-
Advantages: Very fast operation (3–5 minutes), single-person operation possible
-
Disadvantages: Lowest pressure resistance (generally ≤ 0.3 MPa), sealing rings require regular replacement
