Why You Need a Duplex Bag Filter

In many industrial filtration processes, maintaining continuous operation is not just a preference—it’s a necessity. While single-bag filter housings are effective for basic applications, they come with a significant downtime liability: the system must be shut down to replace a clogged bag. This is where the Duplex Bag Filter becomes an invaluable asset. Here is why upgrading to or specifying a Duo-Pack system is critical for efficient operations.

1. Uninterrupted Continuous Operation

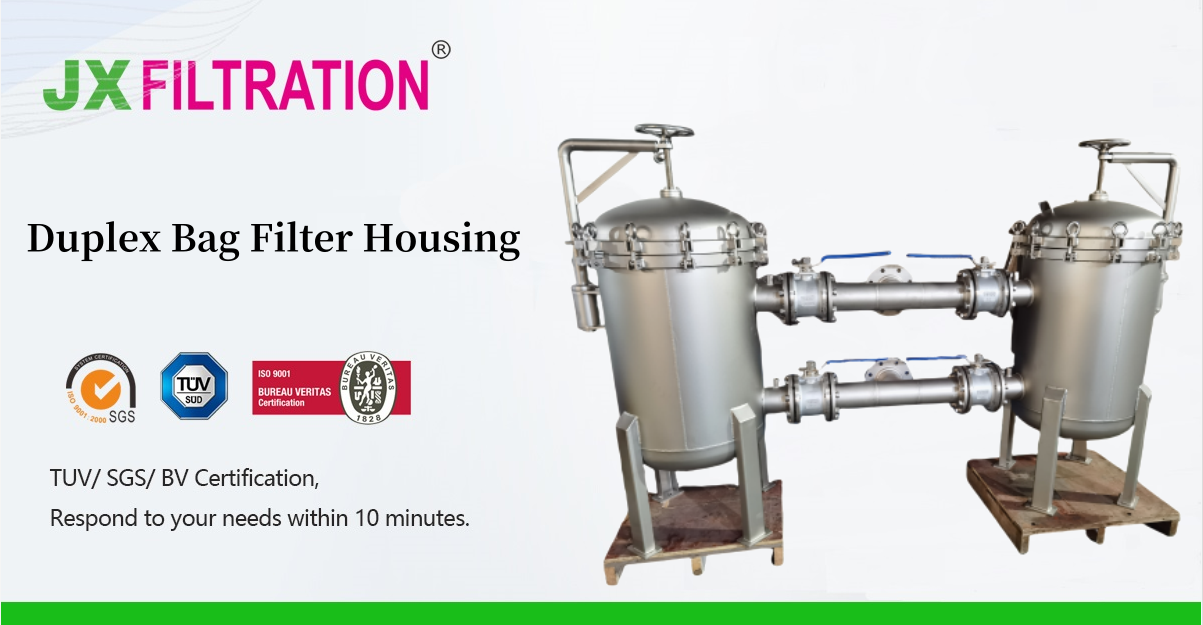

The primary advantage of a duplex filter is its ability to facilitate continuous operation. The system consists of two separate filter chambers connected by a set of diverter valves. While one chamber is in service filtering the fluid, the other remains on standby. When the active bag reaches its holding capacity and pressure builds up, you can simply switch the flow to the second chamber. This allows you to replace the bag in the first chamber without ever shutting down the main process flow.

2. Zero Downtime for Maintenance

Downtime is the enemy of productivity. In a single-filter setup, replacing a bag means stopping pumps and halting production. With a duplex design, maintenance becomes a "while-you-work" task. Because the flow is diverted to the clean chamber, the dirty chamber can be isolated, drained, and serviced while the system continues to run at full capacity. This drastically increases overall equipment effectiveness (OEE).

3. Increased Operational Flexibility

Duplex systems offer excellent versatility. They allow operators to use different micron-rated bags in each chamber. For example, you could run a coarse filtration bag in the first chamber and a fine polishing bag in the second. This staged filtration extends the life of the finer, more expensive bags by having the coarse bag remove the larger particulates first.

4. High Flow Rates with Redundancy

By utilizing two filter chambers, the duplex naturally offers a higher dirt-holding capacity and flow rate potential than a single-bag housing of the same size. Furthermore, it provides built-in redundancy. If a bag ruptures in one chamber, the second chamber acts as a backup, preventing contaminants from passing downstream and protecting sensitive equipment like heat exchangers or spray nozzles.

In conclusion, a duplex bag filter is essential for any application where system uptime, safety, and efficiency are paramount. It transforms filtration from a disruptive maintenance event into a seamless part of the production cycle.
