Features of Standard Bag Filter Housing from JX Filtration

Bag Filter May 8, 2026 Single Bag Filter Housing

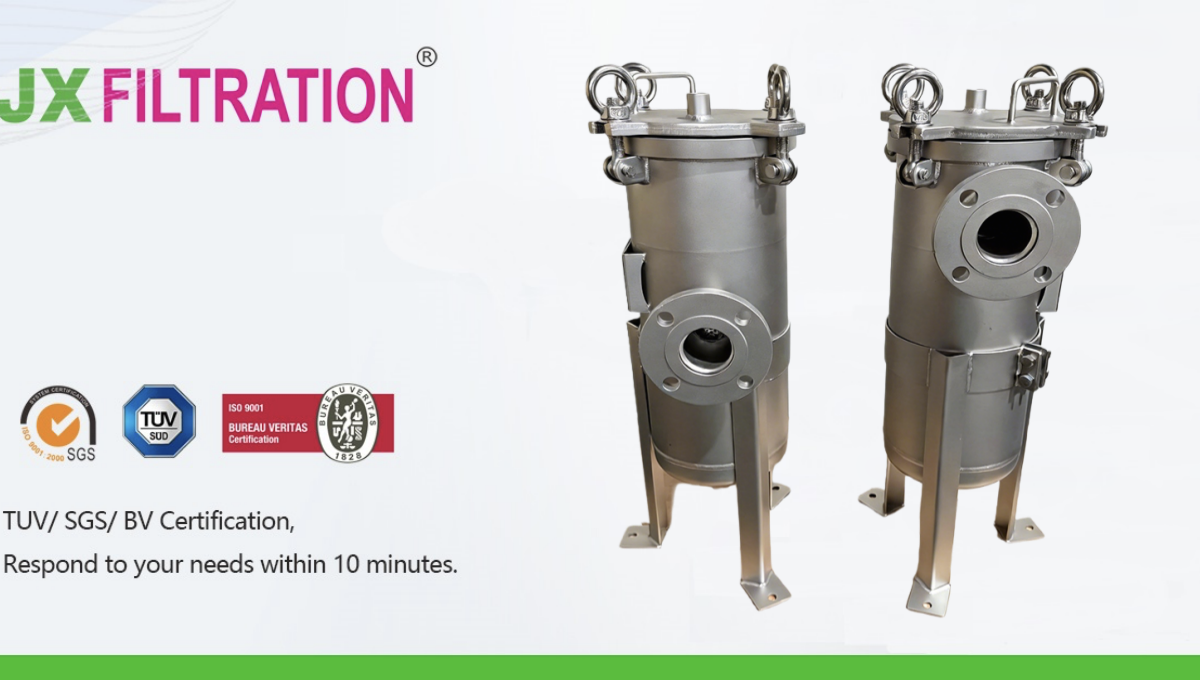

Standard bag filter housing from JX Filtration is designed for a wide range of liquid filtration applications. It combines robust construction with user‑oriented features, ensuring efficient and trouble‑free operation.

1. Simple structure and operation
The filter housing features a straightforward design with minimal components. This makes installation, operation, and monitoring easy even for non‑specialized personnel. The clear flow path reduces pressure loss and allows for quick visual inspection.

2. Tool‑free assembly and disassembly
A simplified snap‑fit design enables tool‑free opening and closing of the housing. This is especially beneficial for applications that require frequent maintenance or rapid element replacement. Downtime is significantly reduced, and no special tools are needed – making routine servicing a quick, one‑person job.

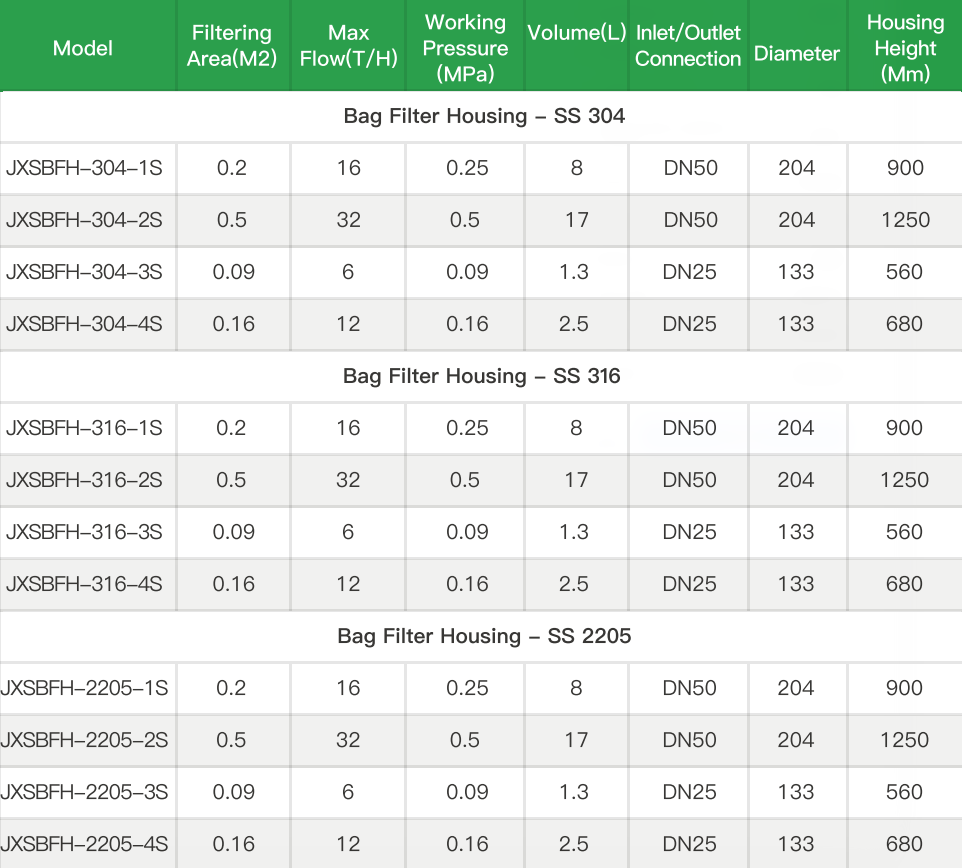

Technical specifications – multiple models are available in SS304, SS316, and SS2205, with detailed parameters listed below.
