Why Use a Two-Stage Bag Filter Unit in Series?

Bag Filter June 5, 2026 Single Bag Filter Housing

Have you ever needed to remove dirt and particles from a liquid, but one filter bag just isn’t enough? That’s where a two-stage bag filter unit (series version) comes in.

What is it?

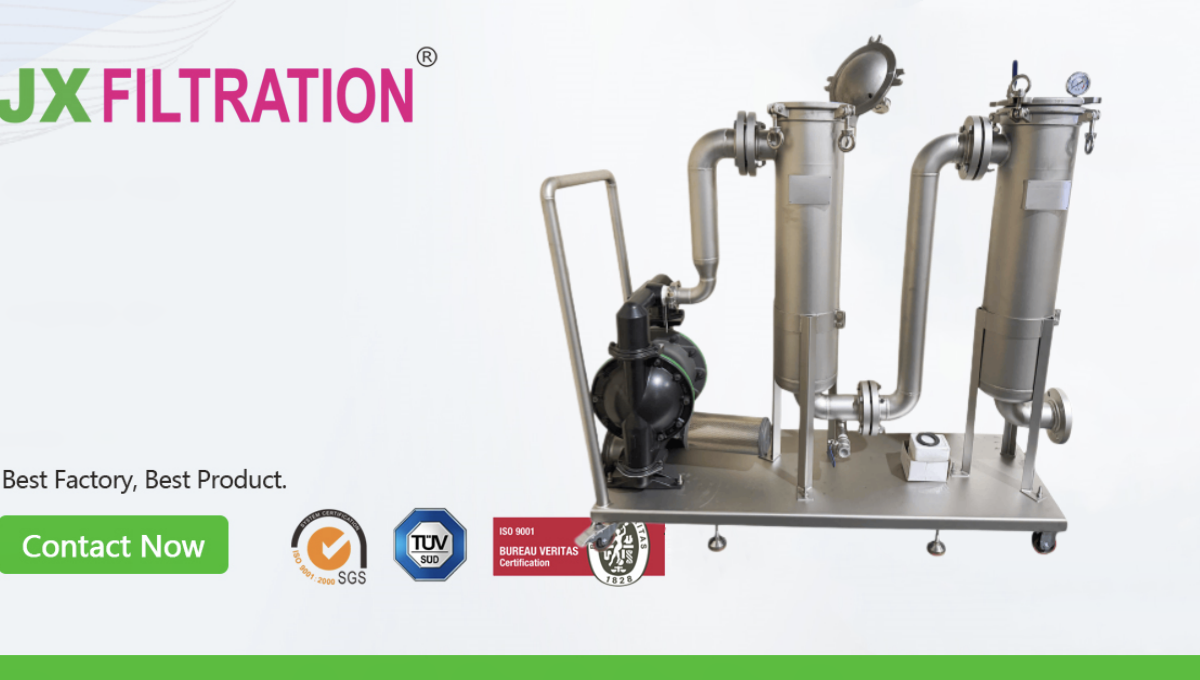

A two-stage bag filter unit in series is simply two bag filters connected one after the other. The liquid first goes through the first filter, then immediately flows into the second filter.

How does it work?

Stage 1 – Coarse filtration
The first filter uses a larger micron bag (e.g., 100 microns). It catches big particles like sand, dust, or fiber.
Stage 2 – Fine filtration
The second filter uses a smaller micron bag (e.g., 10 or 5 microns). It traps the smaller particles that passed through the first bag.

Why use two stages instead of one?

Better cleaning result – You get much cleaner liquid because the second bag catches what the first bag missed.
Longer bag life – The first bag removes the heavy dirt, so the second bag doesn’t clog quickly. You change bags less often.
Lower pressure drop – With two bags sharing the work, the liquid flows smoothly without building up too much back pressure.
Saves money – Fine filter bags can be expensive. By using a cheap coarse bag first, you protect the fine bag and make it last longer.

Where is it used?

You will find two-stage bag filter units in many industries, for example:

Paint and coating manufacturing
Chemical liquid processing
Water treatment
Edible oil and food production
Avocado oil processing

Simple example

Imagine you are making avocado oil. First, you press the fruit. The oil contains small fruit pieces and fine solids. A single fine filter might clog very fast. But with a two-stage unit:

First bag (150 microns) – removes larger pulp pieces.
Second bag (25 microns) – removes fine sediment, giving you clean oil.

Conclusion

A two-stage bag filter unit in series is a smart, simple, and cost-effective way to get cleaner liquids. It works hard, saves bags, and keeps your production running smoothly.

So next time you need better filtration, ask yourself: “Why not use two stages instead of one?”
